ENGINEERING CONNECTOR

KZ608F

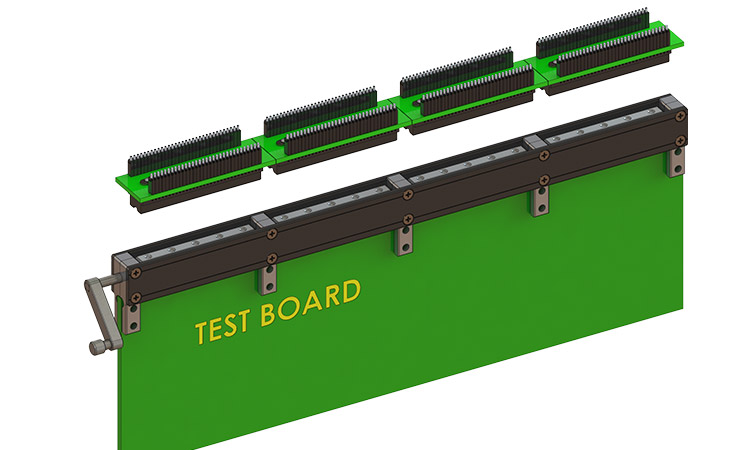

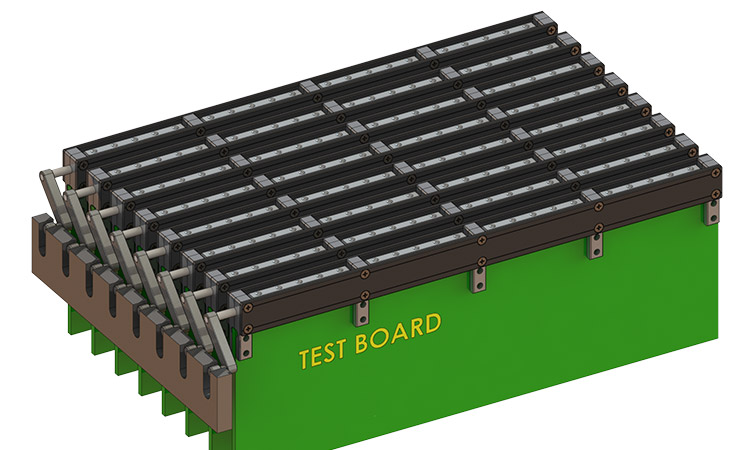

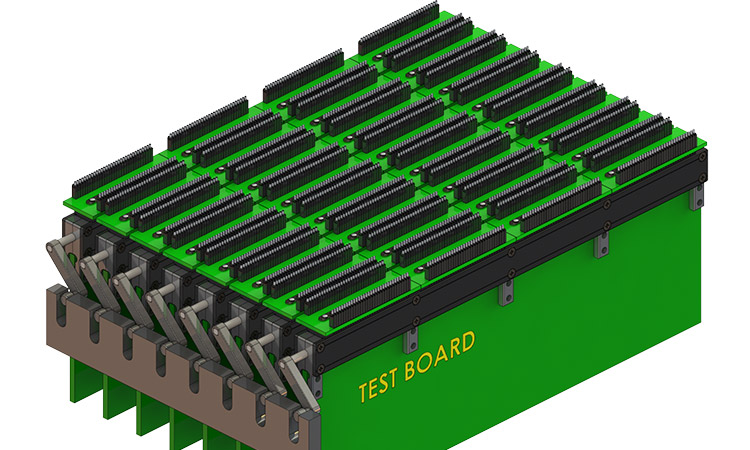

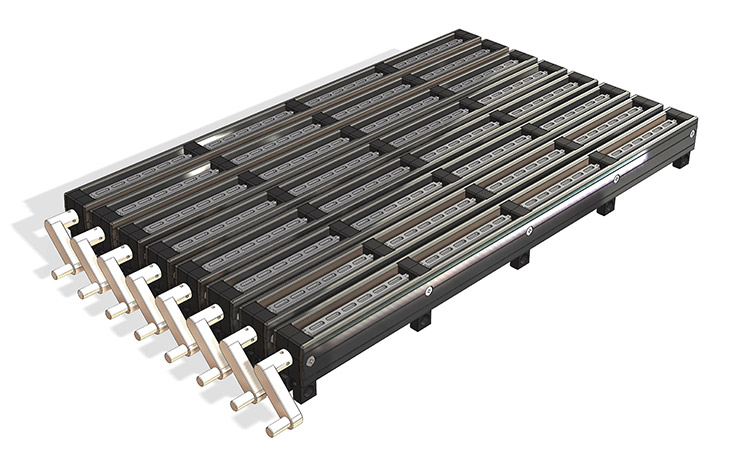

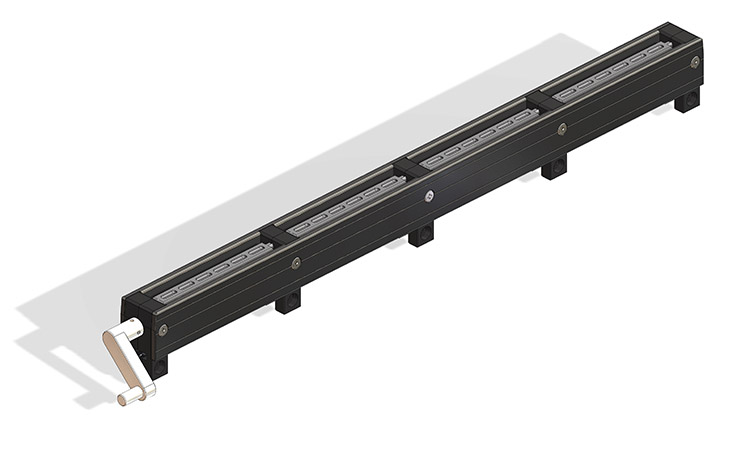

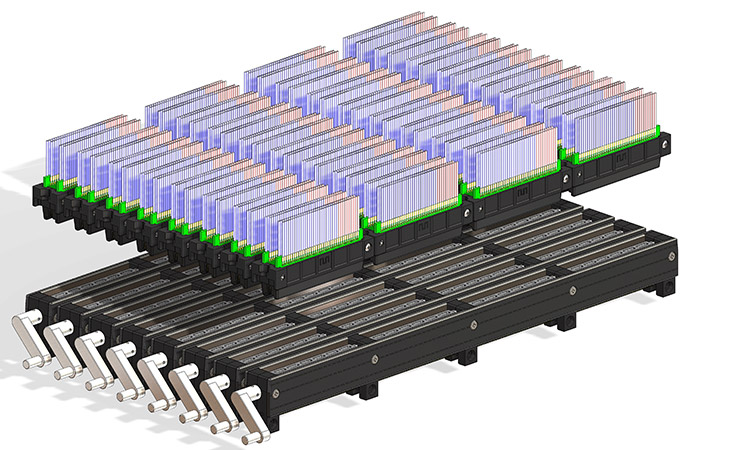

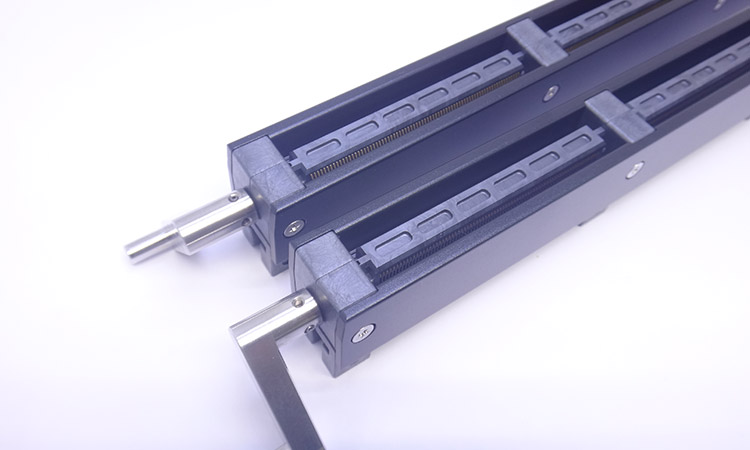

TYPE: 608PIN FEMALE ZIF(ZERO INSERTION FORCE) CONNECTOR MATING WITH KZ152M
APPLICATION: SEMICONDUCTOR PKG & WAFER TESTER, HI-FIX, WAFER MOTHERBOARD
             LCD TESTER, OLED TESTER, TELECOMMUNICATION
NOTE : INTERFACE BETWEEN TEST SYSTEM AND REMOVABLE HI-FIX OR WMB

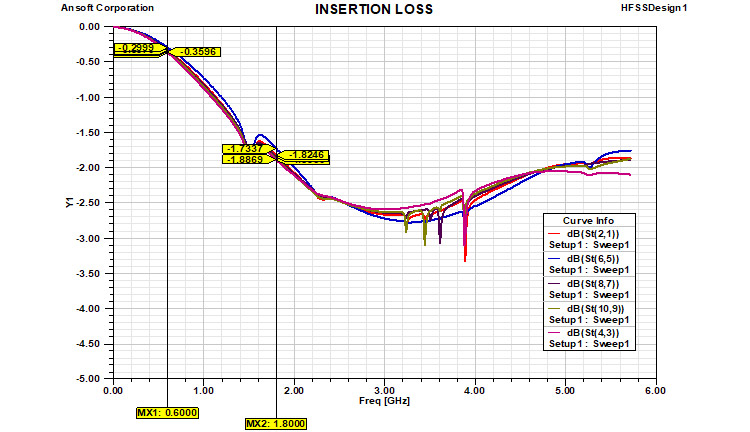

INSERTION LOSS -1.88dB, 1.8GHz
CLOSS TALK -33.98dB, > 1.8GHz
CURRENT 1A@PIN
